3.4 Tour of RStudio

RStudio is an Integrated Development Environment (IDE) for R, a programming language for statistical computing and graphics. This section provides an overview of RStudio’s interface and basic functionality.

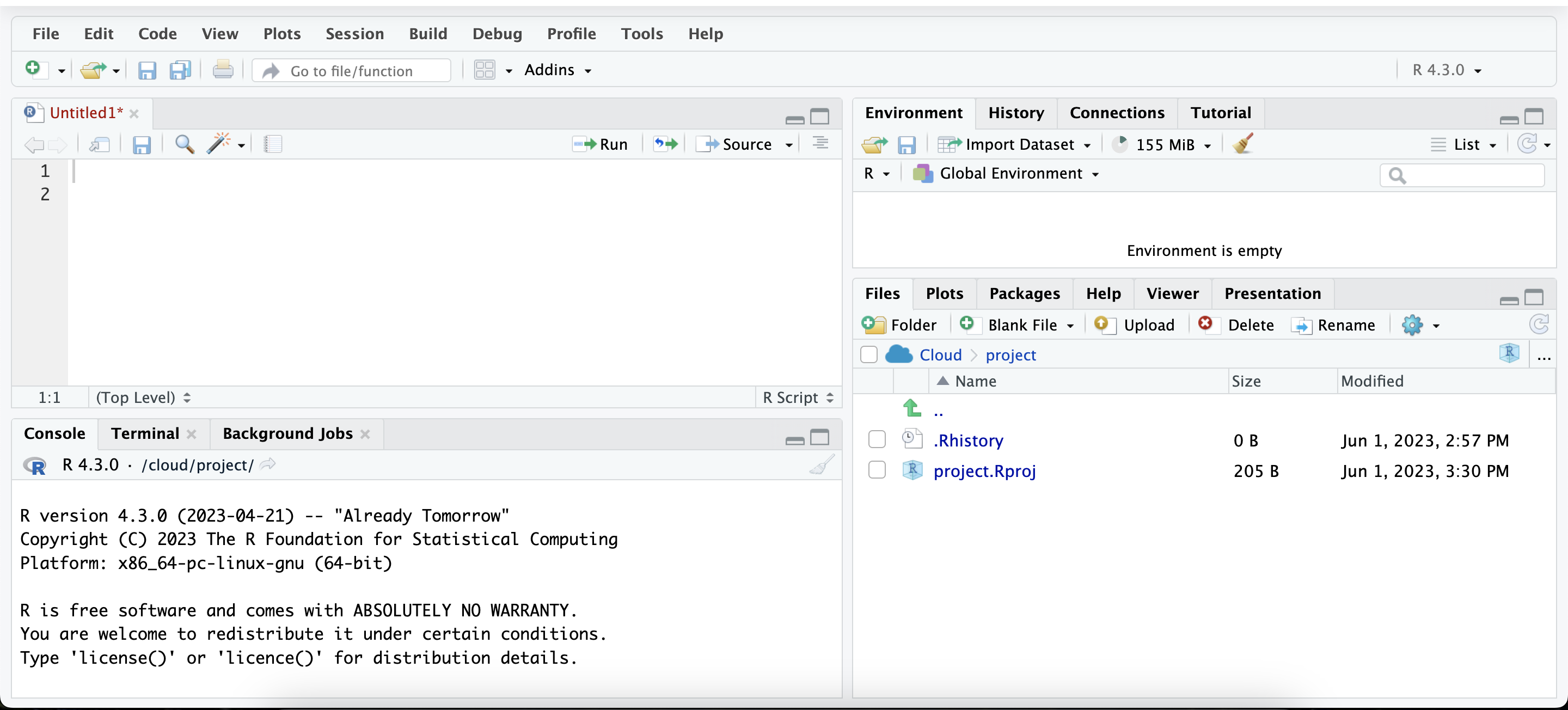

3.4.1 RStudio Layout

RStudio’s interface is divided into four main panels: the Source Panel, the Console Panel, the Environment/History Panel, and the Files/Plots/Packages/Help Panel.

RStudio Layout

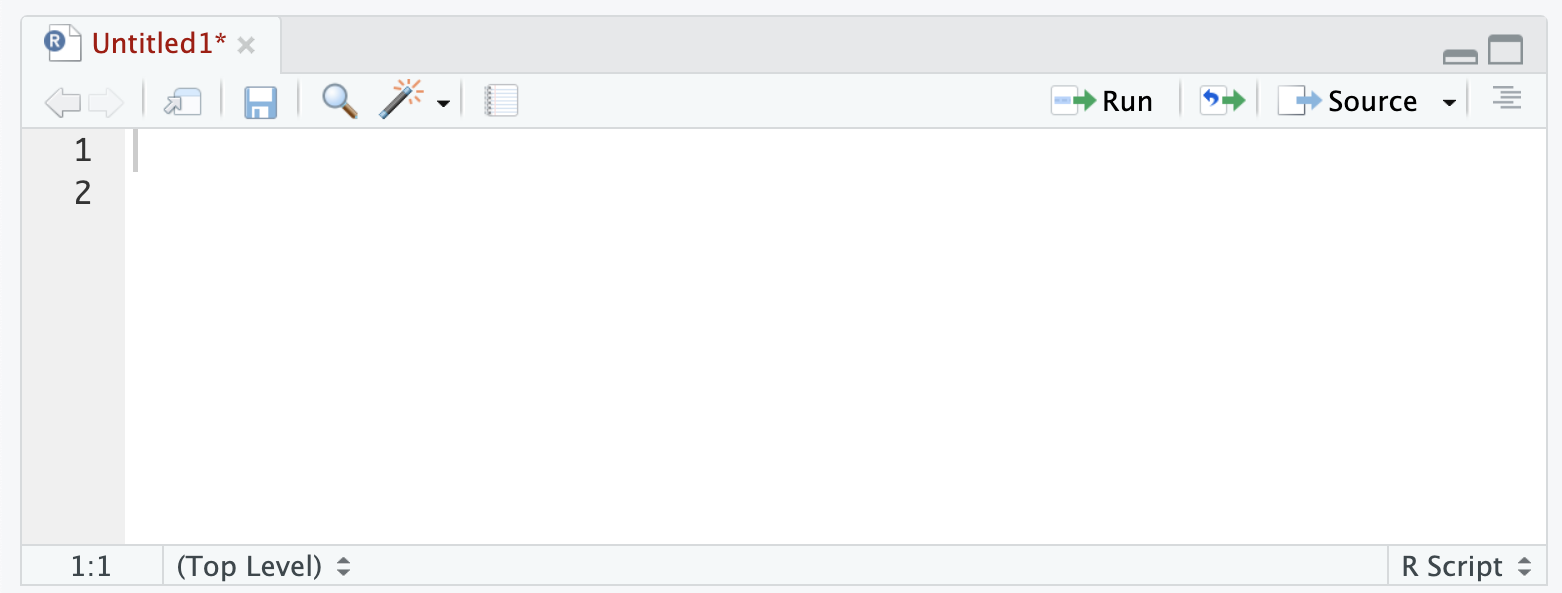

3.4.1.1 Source Panel

The top-left panel is the Source Panel, where R scripts, functions, and commands are written. New R scripts can be created via the menu options: File -> New File -> R Script.

Source Panel

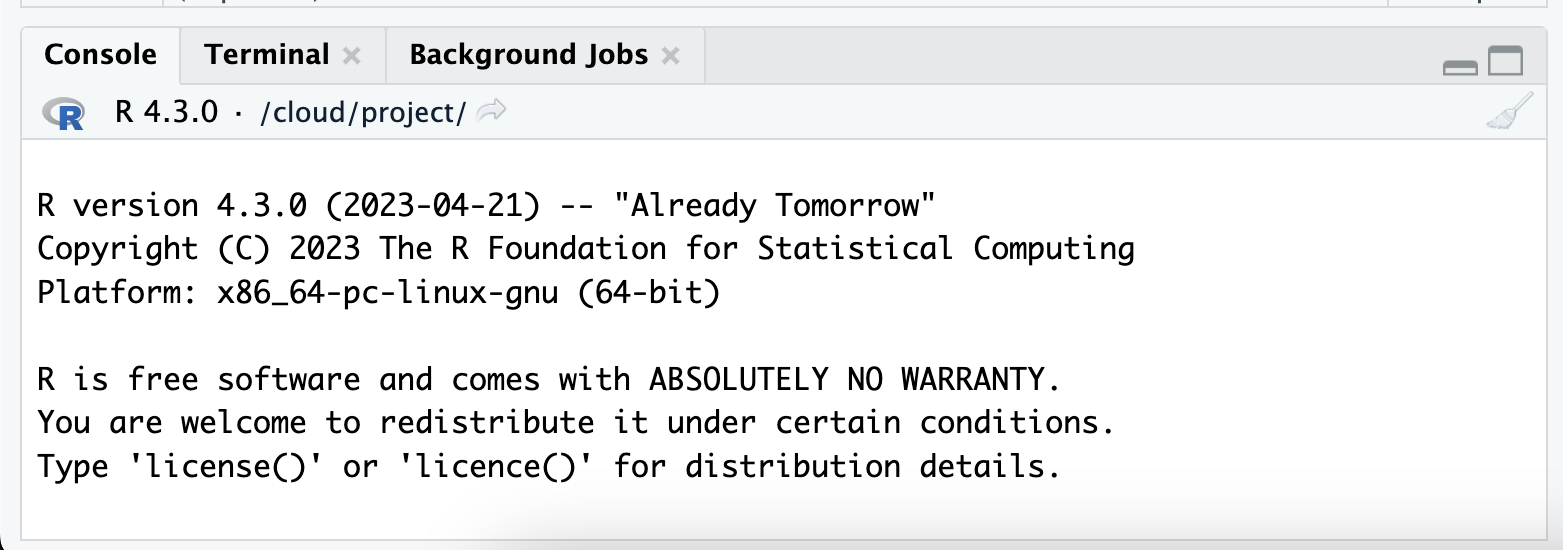

3.4.1.2 Console Panel

Below the Source Panel is the Console Panel, where R code is executed. Any command executed in the script or typed directly into the console will appear here along with its output.

Console Panel

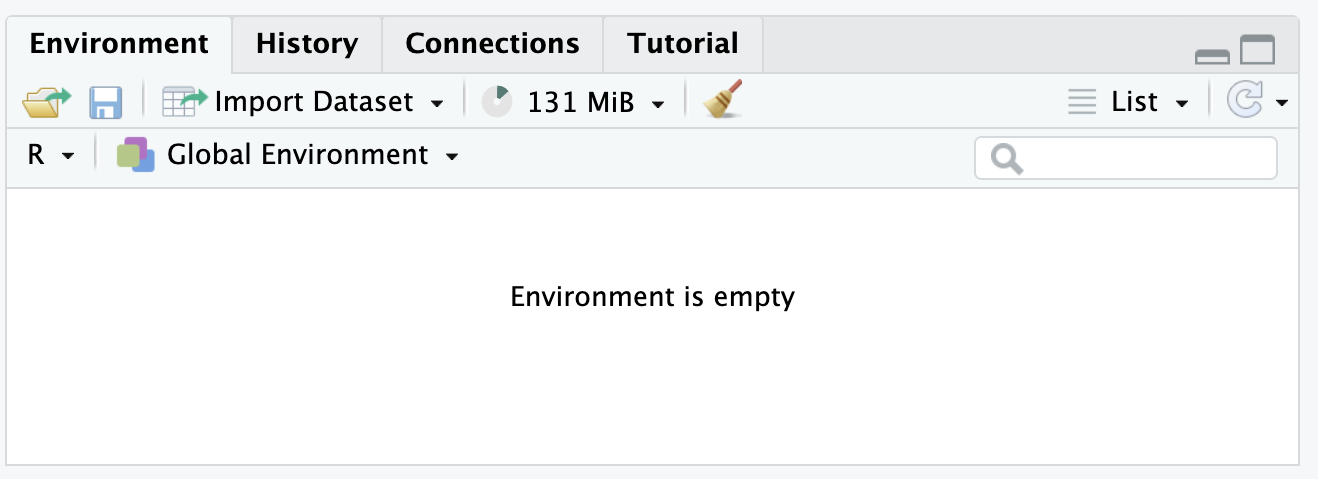

3.4.1.3 Environment/History Panel

The top-right panel is the Environment/History Panel. The Environment tab displays all variables, data frames, and other objects in the current workspace. The History tab keeps a record of command history.

Environment/History Panel

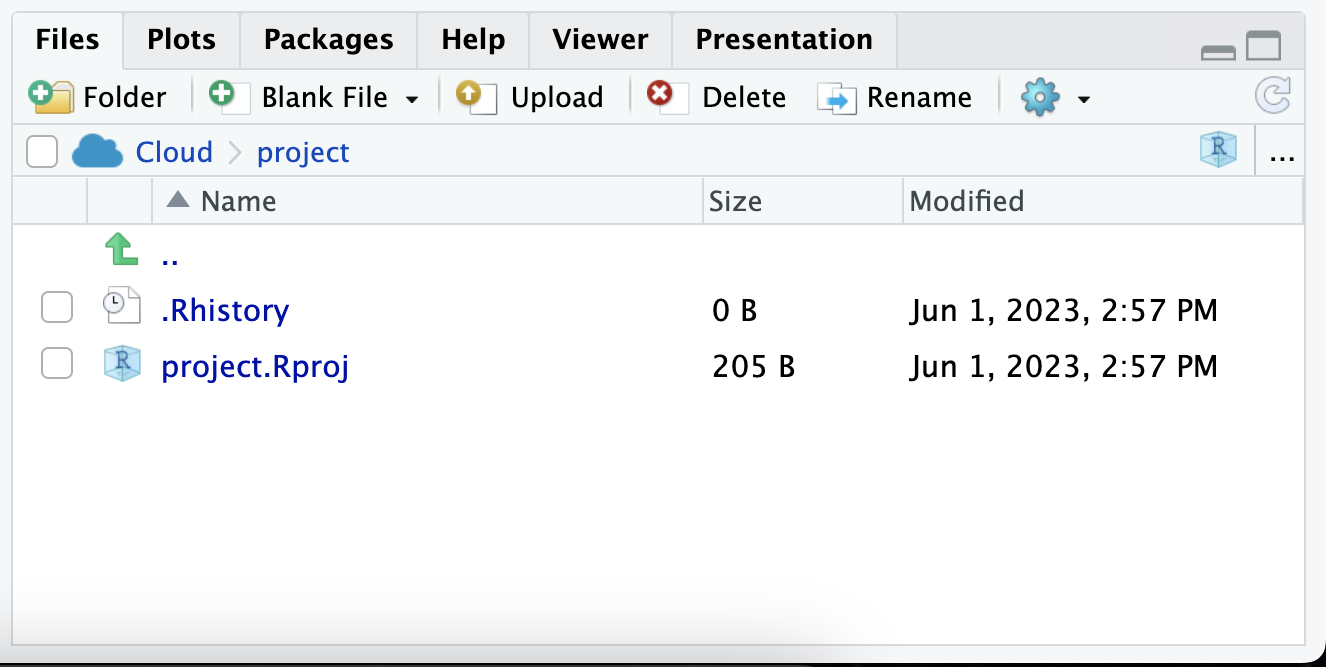

3.4.1.4 Files/Plots/Packages/Help Panel

The bottom-right panel is the Files/Plots/Packages/Help Panel. This panel provides access to files, any plots generated, R packages, and R’s help documentation.

Files/Plots/Packages/Help Panel

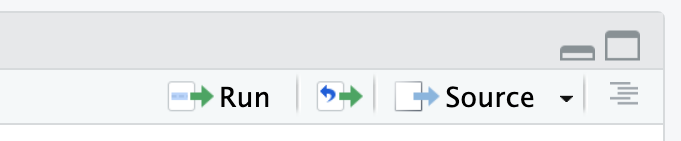

3.4.2 Writing and Running R Code

R scripts can be written in the Source Panel and executed in a few ways. To run the current line or selected lines, use Ctrl+Enter (or Cmd+Enter on a Mac) or click the “Run” button in the toolbar. To run the entire script, use the Source button in the toolbar.

Writing and Running R Code

3.4.3 Getting Help

RStudio provides comprehensive help documentation for R functions and packages. By using the ?functionName command, detailed help for any function can be accessed.
